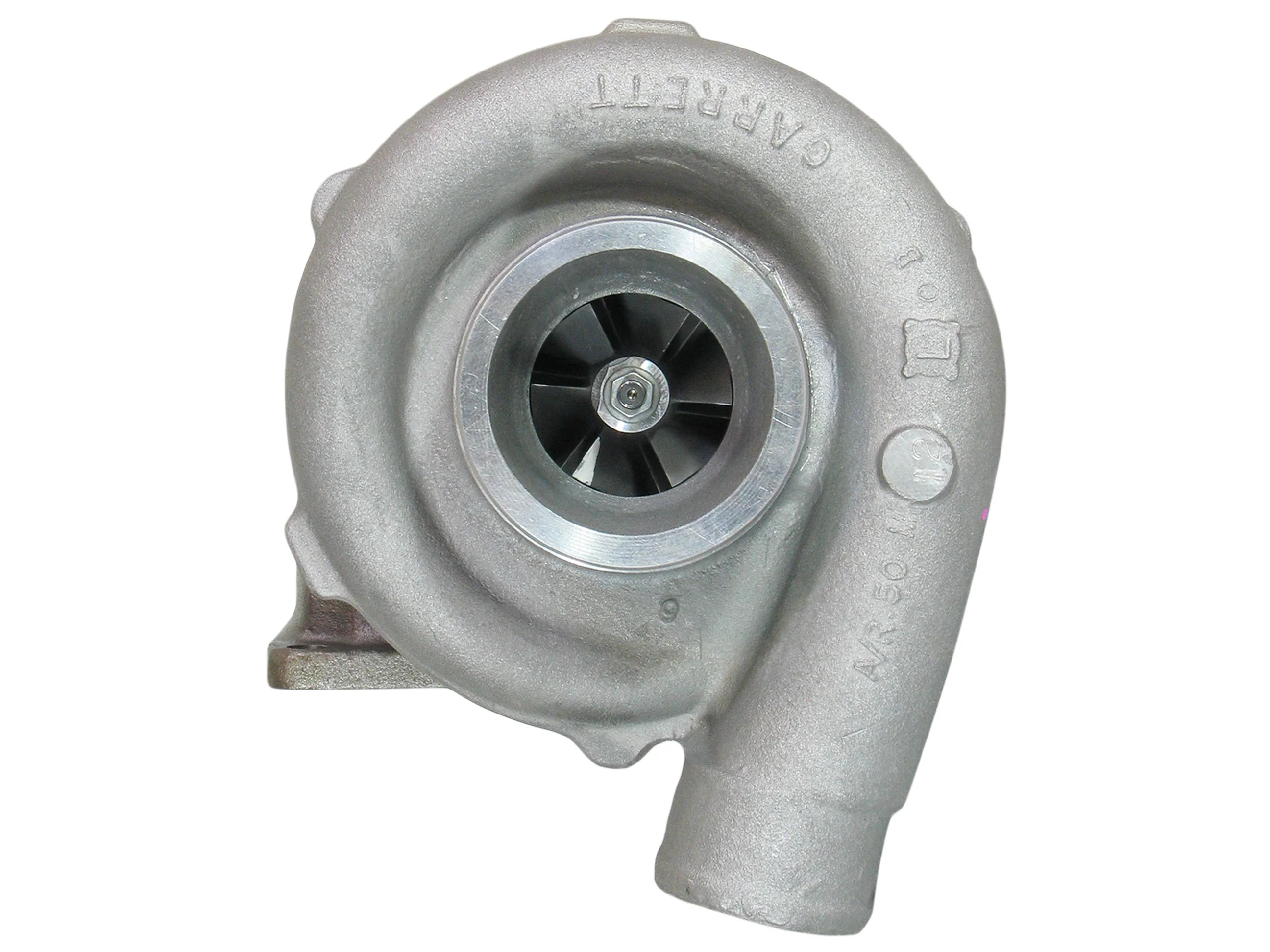

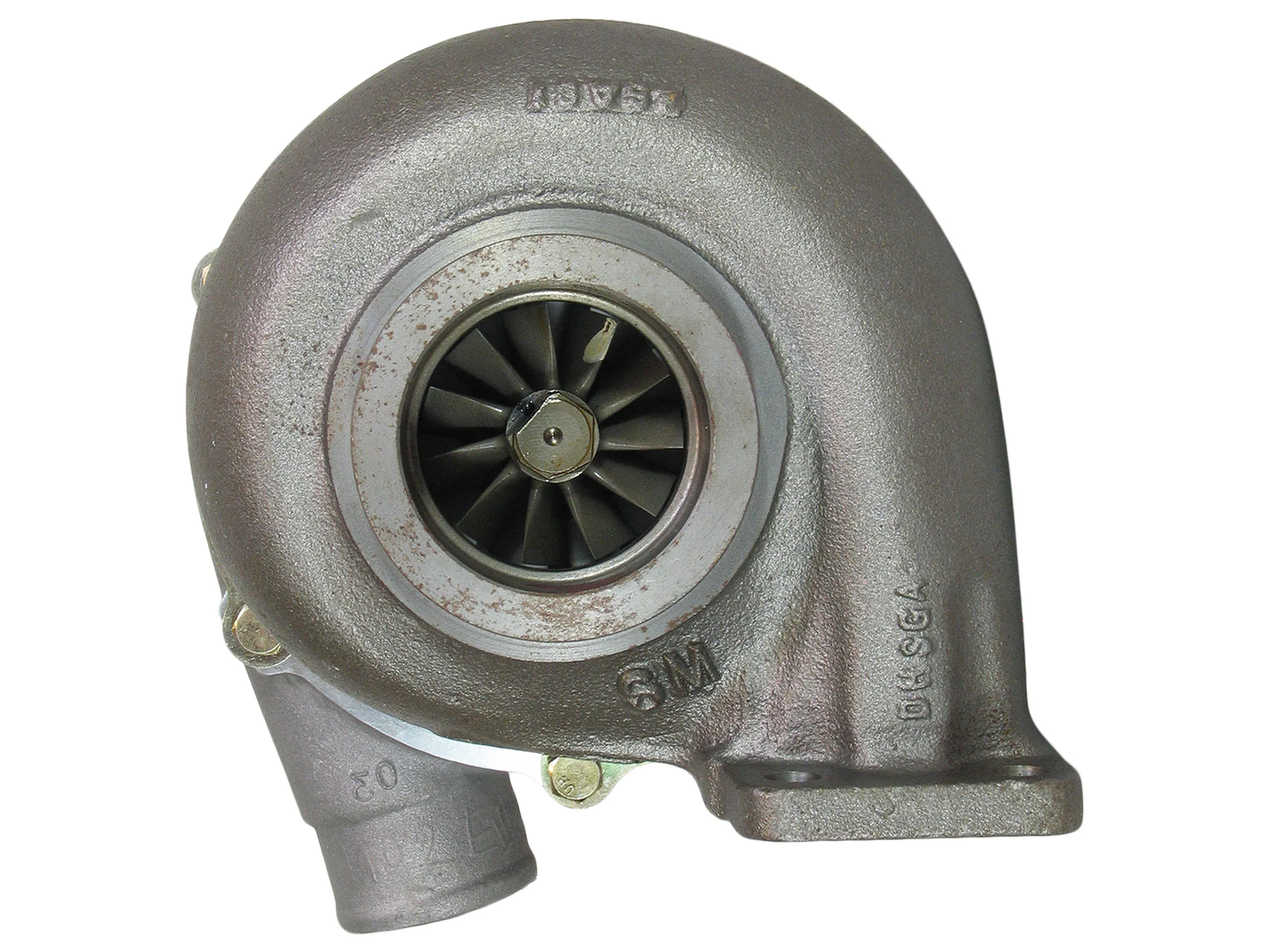

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 466563-5003
Interchangeable Number: 466563-0003, 466565-5003S, 466563-0001, 466563-5001, 466563-5001S, 466563-0004, 466563-5004, 466563-5004S, 166592, 3520055H, 3522777H, 3522777HX, 3522778, 3525648, 3528741, 3528773
OEM Number: 167338, 1817311C91, 3520055, 3522777, 3528774, 3530714, 3802115, 3802289, J907026, J907028, J907029
Turbo Model: TA3406
Manufacturer: Honeywell-Garrett

Year: 1987-
Engine: 6BT, 6BT0007, 6BT0009, 6BT0024, 6BT0025, 6BTA
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 256°
Angle β (Turbine Housing): 231°
Back Plate: 408045-0039
Bearing Housing: 430027-0025/430027-0022 (186879, 186881)(1100030450)(Oil Cooled)
CHRA: 447450-0065 (447450-5065S, 3523317)
Compressor Cover: 443705-0011
Compressor Wheel: 442293-0006 (Ind. 47.4 mm, Exd. 75 mm, Trim 40, 6+6 Blades)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Heat Shield: 409627-0000 (1100030340, 103121-0000)
Repair Kit: 468265-0000 (1100040760)
Turbine Housing A/R: 1.06
Turbine Housing: 441667-0007
Turbine Wheel: 451314-0002 (Ind. 53.5 mm, Exd. 64 mm, Trim 70, 11 Blades)(1100030437)
Turbo Technology: Free Floating

Application:
1987- CBT P6 150-3 Tractor with Cummins 6BT0009 Engine
1987- CBT PC150-5 Tractor with Cummins 6BT Engine
1987- Dynapac CA25-11 Single Drum Vibratory Roller, Compactor with Cummins 6BT0024 Engine
1987- Excavator, Genset with Cummins 6BTA, 6BT Engine
1987- Industrial with Cummins 6BTA Engine
1987- J. I. Case 888-CK Excavator with Cummins 6BT0025 Engine
1987- Komatsu GD523 Motor Grader with Cummins 6BTA Engine
1987- Komatsu PC150-3, PC150-5 Hydraulic Excavator, Earth Moving with Cummins 6BTA Engine
1987- Miller 70C, TM14 Tractor with Cummins Engine
1987- Samsung LX15 Loader, MX8W Excavator with Cummins 6BT5.9 Engine
CBT GD523 with Cummins 6BT0007 Engine
J. I. Case with Cummins 6BT Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
